Precision-Engineered Panels. Designed for Performance. Built for Reliability.
From Single-Line Diagrams (SLDs) and detailed electrical schematics to fully integrated power and control assemblies, ETPL delivers custom-engineered PCC, MCC, APFC, VFD, PLC, and Industrial Automation Panels through advanced electrical design, optimized busbar engineering, intelligent component integration, and precision manufacturing.
Our products
Panel Manufacturing
Every panel is engineered with a focus on electrical safety, operational reliability, maintainability, and applicable IEC standards — ensuring dependable performance across demanding industrial environments.
Panel Manufacturing

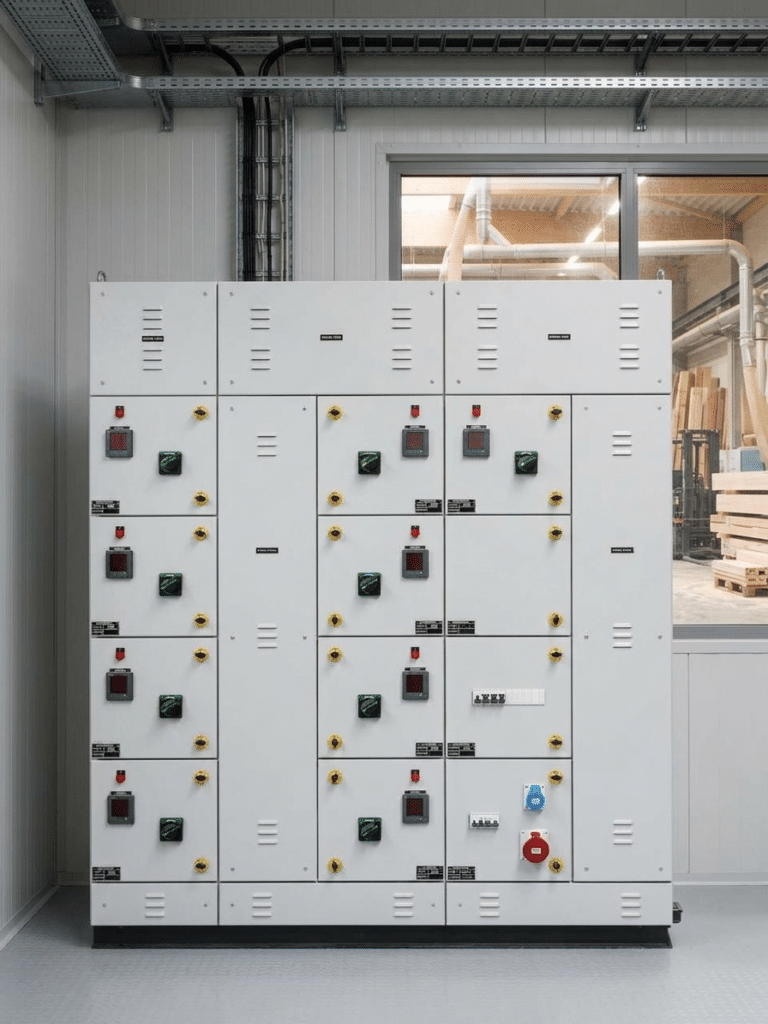

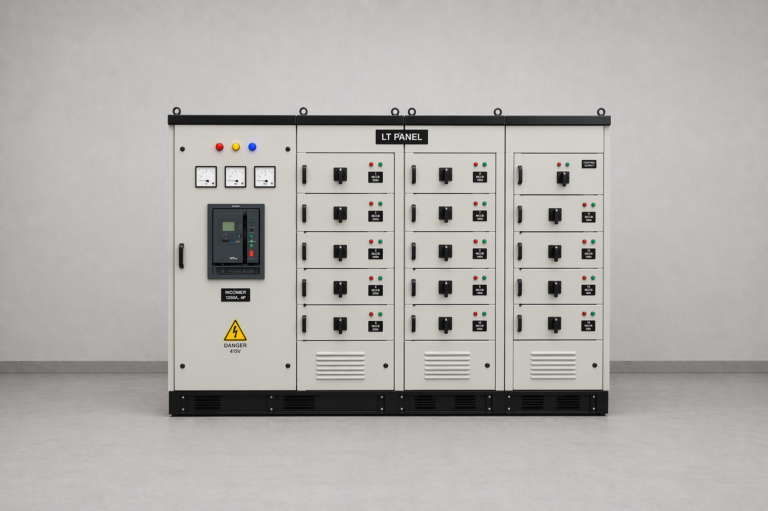

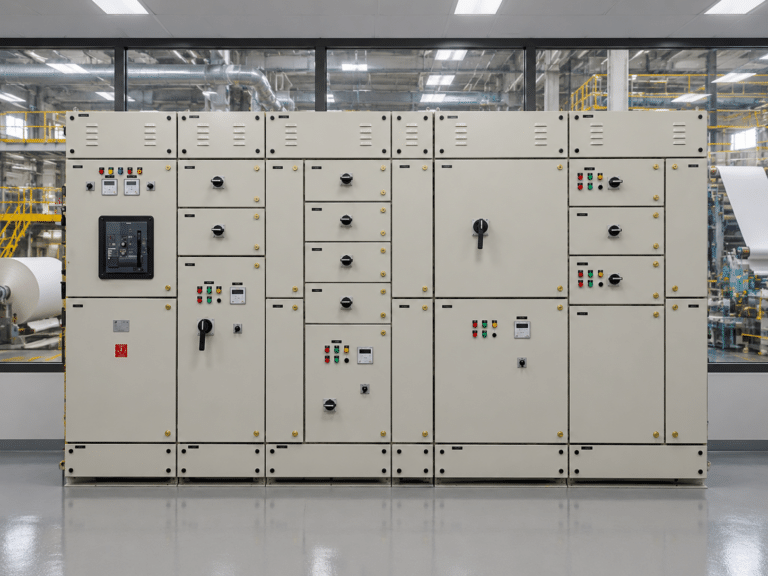

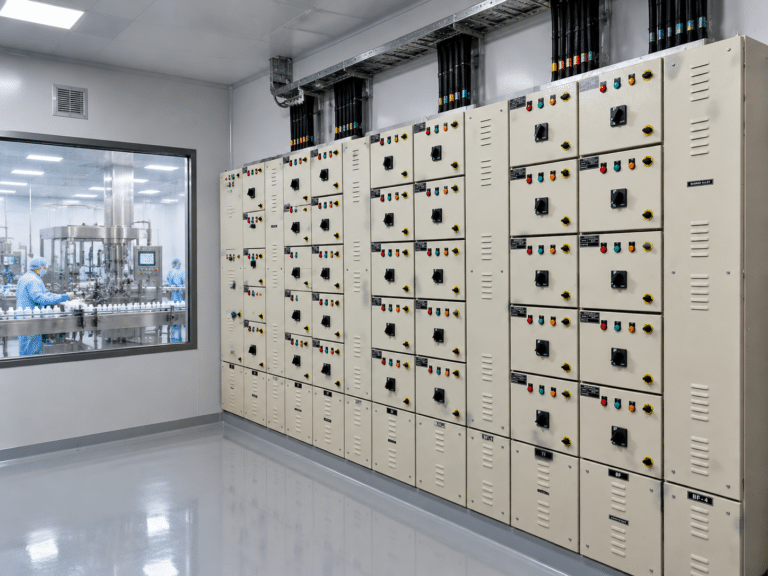

LT (Low Tension) Panels
- Ekatva Technologies
Ekatva Technologies manufactures high-performance LT (Low Tension) Panels engineered for safe, reliable, and efficient power distribution in industrial, commercial, and infrastructure applications. Designed using premium-grade CRCA steel and equipped with world-class switchgear components, our LT panels ensure maximum safety, operational efficiency, and long-term durability.
Our LT Panels are suitable for main power distribution, motor control, feeder management, and electrical protection systems. Each panel is designed, assembled, and tested as per relevant IEC and IS standards to deliver consistent performance under demanding operating conditions.
Key Features
- Custom In-house Manufacturing
- ACB, MCCB & MCB Based Protection
- Short Circuit & Overload Protection
- High Mechanical Strength Construction
- Modular and Expandable Design
- IP54/IP55 Protection Options
- Easy Operation and Maintenance
- Reliable and Efficient Power Distribution
- Fully Tested Before Dispatch
- Designed as per Industrial Standards
Applications
- Manufacturing Industries
- Commercial Buildings
- Hospitals & Healthcare Facilities
- Hotels & Shopping Complexes
- Data Centers
- Water Treatment Plants
- Infrastructure Projects
- Utility & Power Distribution Networks
Why Choose Our LT Panels?
At Ekatva Technologies, we focus on delivering dependable, high-quality electrical distribution solutions tailored to customer requirements. Our LT Panels are engineered for superior safety, reliability, and operational efficiency, helping industries achieve uninterrupted power distribution with reduced downtime and long service life.
Specifications
- Rated Voltage
- Up to 690V AC
- Frequency
- 50/60 Hz
- Rated Current
- Up to 6300A
- Short Circuit Withstand Capacity
- Up to 65kA
- Busbar Material
- Electrolytic Grade Copper / Aluminium
- Protection Class
- IP42, IP54, IP55
- Incoming Options
- ACB, MCCB, SFU
- Outgoing Feeders
- MCCB, MCB, MPCB, SFU
- Panel Construction
- Floor Mounted / Free Standing
- Compliance
- IEC 61439, IS Standards
Panel Manufacturing

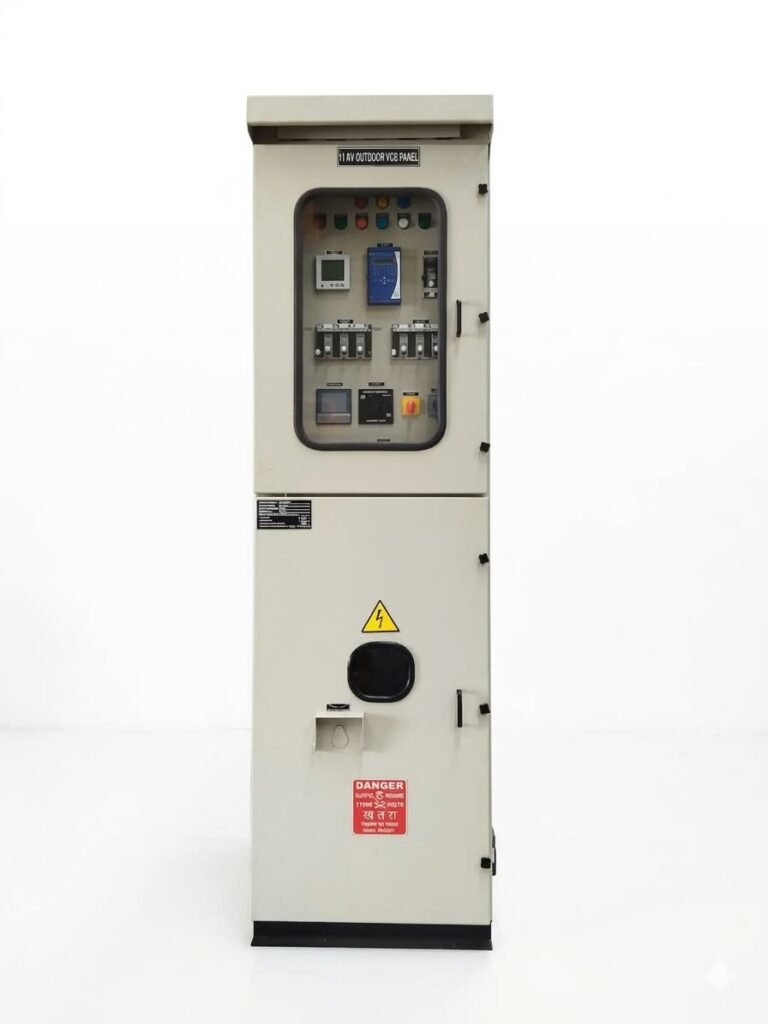

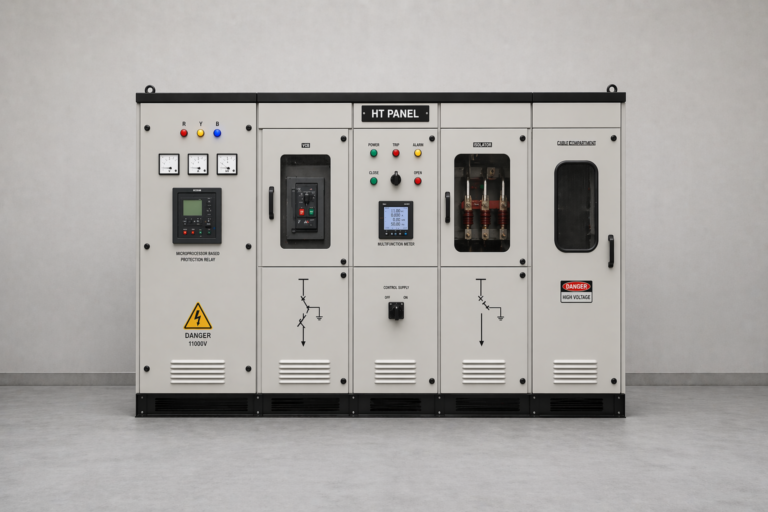

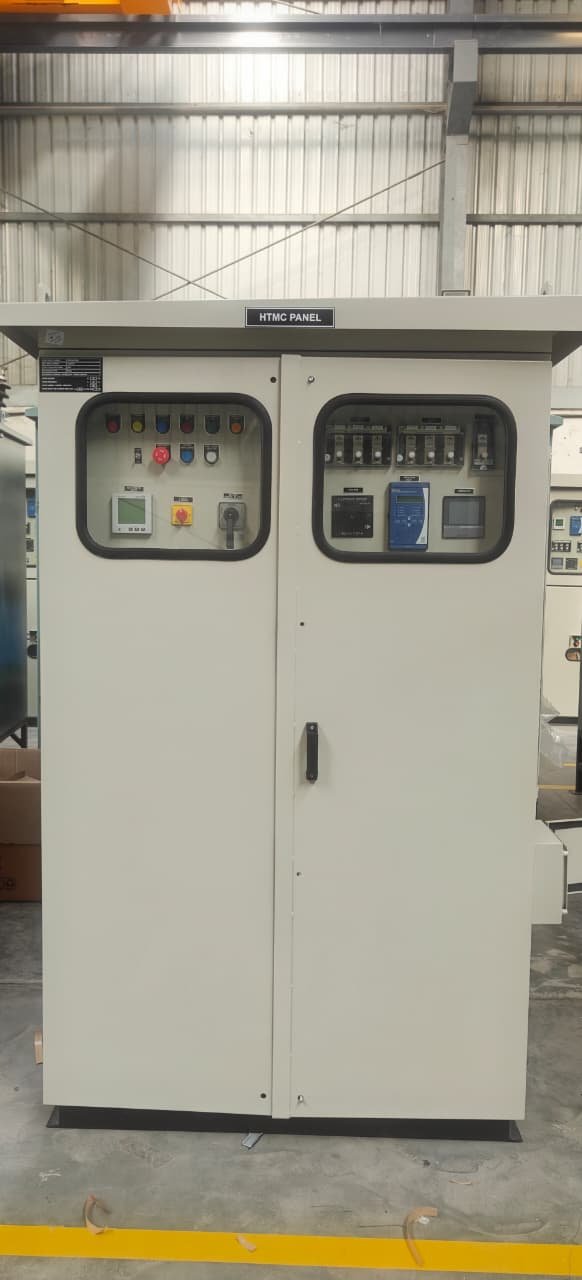

HT (High Tension) Panels
Supplying & Commissioning HT Panels
Our HT (High Tension) Panels are designed for safe, reliable, and efficient medium-voltage power distribution in industrial, commercial, and utility applications. We provide end-to-end solutions including supply, installation, testing, and commissioning of HT panels sourced from trusted manufacturers and built to meet stringent industry standards.
Engineered for superior protection, fault management, and operational reliability, our HT Panels ensure uninterrupted power distribution while maintaining the highest levels of safety and system performance.
Technical Features
- Vacuum Circuit Breaker (VCB) Based Switching System
- Numerical Protection Relays for Advanced Monitoring
- Arc Fault Resistant Design
- High Short-Circuit Withstand Capability
- Metal-Clad and Compartmentalized Construction
- Busbar Protection and Fault Isolation
- SCADA and Automation Compatibility
- Remote Monitoring and Control Support
- Reliable Switching and Load Management
- Factory Tested for Safety and Performance
Key Features
- Authorized Supply & Turnkey Solutions
- HT Panel Installation & Commissioning
- Advanced Protection Relay Integration
- Enhanced Operational Safety
- High System Reliability
- Easy Maintenance Access
- Compliance with Industry Standards
- Customized Solutions for Project Requirements
Applications
- Manufacturing Industries
- Power Plants & Utilities
- Commercial Buildings
- Data Centers
- Water Treatment Facilities
- Infrastructure Projects
- Oil & Gas Facilities
- Renewable Energy Projects
Why Choose Our HT Panels?
Our HT Panels are engineered to deliver reliable medium-voltage power distribution, advanced protection, and long-term operational performance. With robust construction, intelligent protection systems, and professional installation support, they help ensure maximum uptime, enhanced safety, and efficient electrical network management for critical applications.
Specifications
- Voltage Class
- 11kV / 22kV / 33kV (Project Specific)
- Frequency
- 50 Hz
- Rated Current
- Up to 3150A
- Short Circuit Withstand Capacity
- Up to 31.5kA for 3 Seconds
- Circuit Breaker Type
- Vacuum Circuit Breaker (VCB)
- Protection Relays
- Numerical / Microprocessor-Based Relays
- Busbar Material
- Electrolytic Grade Copper / Aluminium
- Degree of Protection
- IP4X / IP54 (As Required)
- Panel Construction
- Metal-Clad & Compartmentalized
- Control Voltage
- 110V DC / 220V DC / 230V AC
- Communication
- SCADA & Remote Monitoring Compatible
- Standards Compliance
- IEC 62271 & Relevant IS Standards
- Installation Type
- Indoor / Outdoor Configuration
Panel Manufacturing

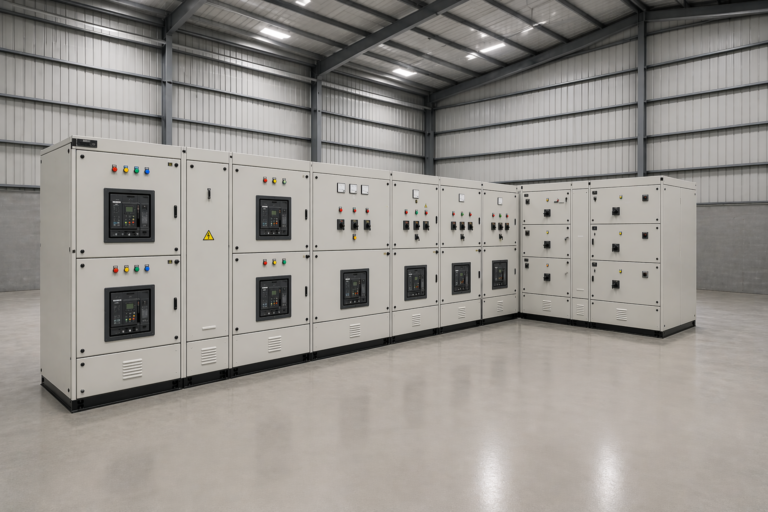

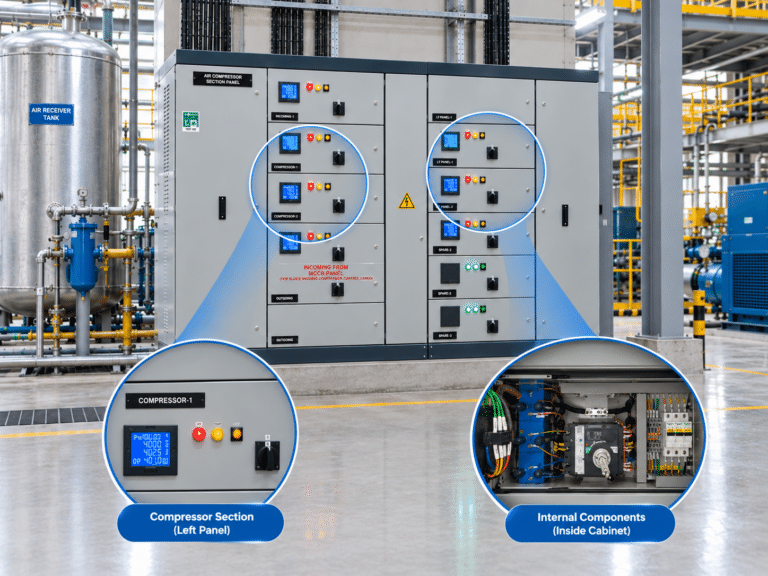

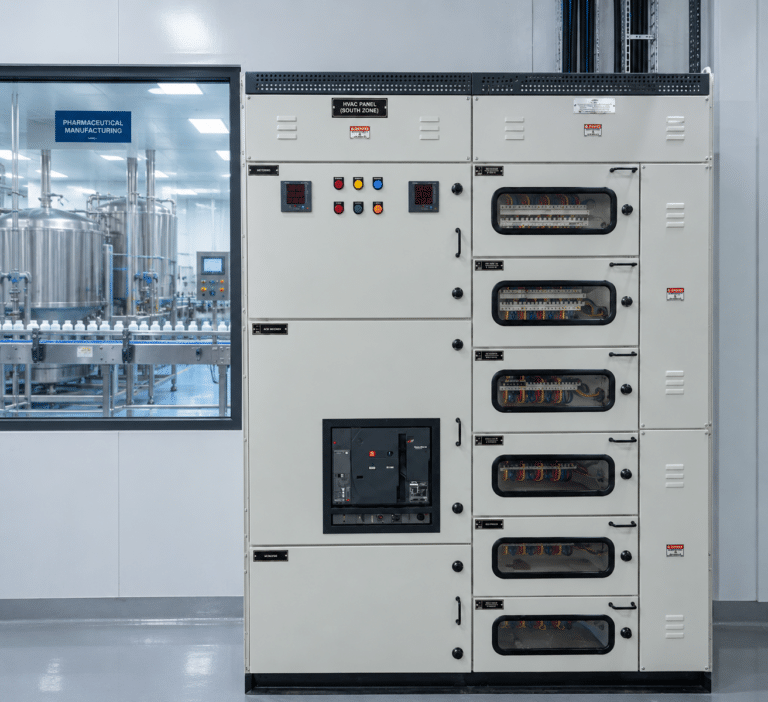

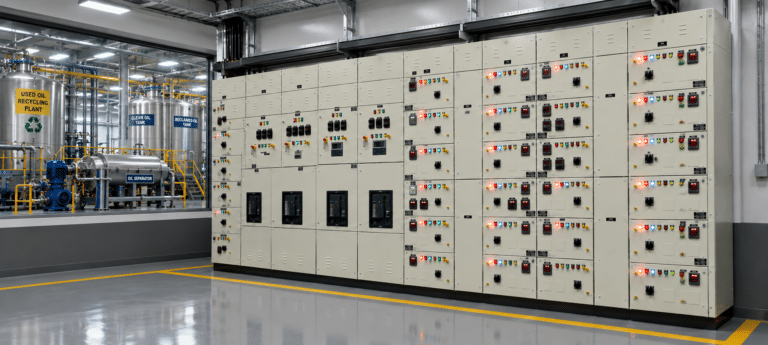

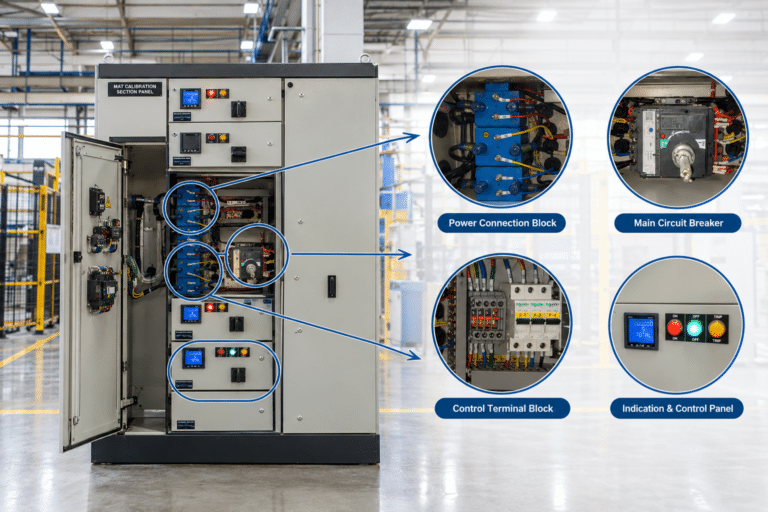

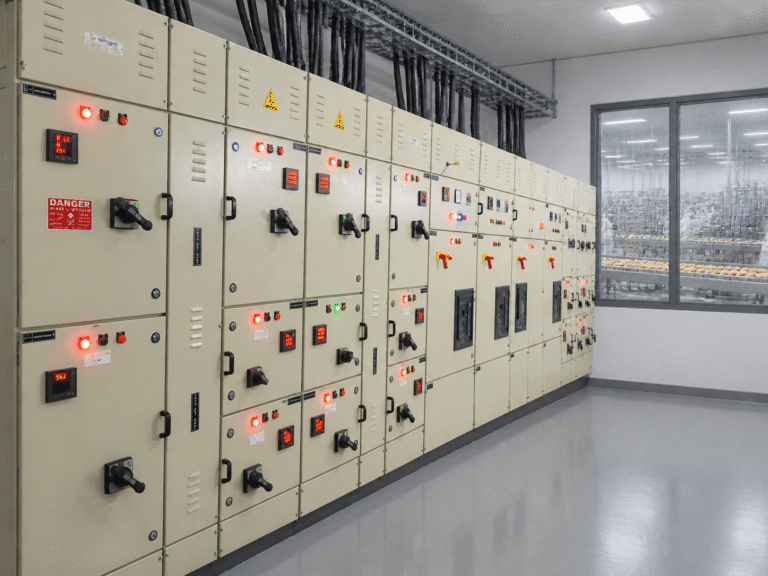

PCC (Power Control Center) Panels
Our PCC (Power Control Center) Panels are designed to serve as the primary electrical distribution and control system for industrial and commercial facilities. Engineered for reliable power management, these panels efficiently receive power from transformers or generators and distribute it to various loads, MCC panels, and sub-distribution systems.
Built with high-quality components and robust construction, our PCC Panels provide superior protection, operational safety, and uninterrupted performance, making them ideal for demanding industrial environments.
Technical Features
- High Fault Withstand Busbar System
- Advanced Power Distribution Architecture
- ACB & MCCB Based Protection
- Short Circuit & Overload Protection
- Intelligent Energy Monitoring
- Load Management & Power Optimization
- Modular Expandable Design
- Efficient Cable Management
- Thermal Stability & High Mechanical Strength
- Factory Tested for Performance & Reliability
Key Features
- Custom In-house Manufacturing
- Reliable Power Distribution
- Enhanced Electrical Safety
- Smart Metering & Energy Monitoring
- Easy Operation & Maintenance
- Heavy-Duty Industrial Construction
- Project-Specific Customization
- Designed as per Industrial Standards
Applications
- Manufacturing Industries
- Process Plants
- Commercial Buildings
- Data Centers
- Hospitals & Healthcare Facilities
- Water & Wastewater Treatment Plants
- Infrastructure Projects
- Utility & Energy Facilities
Why Choose Our PCC Panels?
Our PCC Panels are engineered to provide reliable power distribution, enhanced protection, and efficient load management. Designed for continuous operation in demanding environments, they help improve system reliability, minimize downtime, and ensure safe electrical operations across industrial and commercial facilities.
Specifications
- Rated Voltage
- Up to 690V AC
- Frequency
- 50/60 Hz
- Rated Current
- Up to 6300A
- Short Circuit Withstand Capacity
- Up to 65kA
- Busbar Material
- Electrolytic Grade Copper / Aluminium
- Incoming Protection
- ACB / MCCB
- Outgoing Feeders
- MCCB, MCB, SFU
- Degree of Protection
- IP42 / IP54 / IP55
- Form of Segregation
- Form 2B / Form 3B / Form 4B
- Panel Construction
- Floor Mounted, Modular Design
- Metering
- Digital Multifunction Energy Meters
- Compliance
- IEC 61439 & Relevant IS Standards
Panel Manufacturing

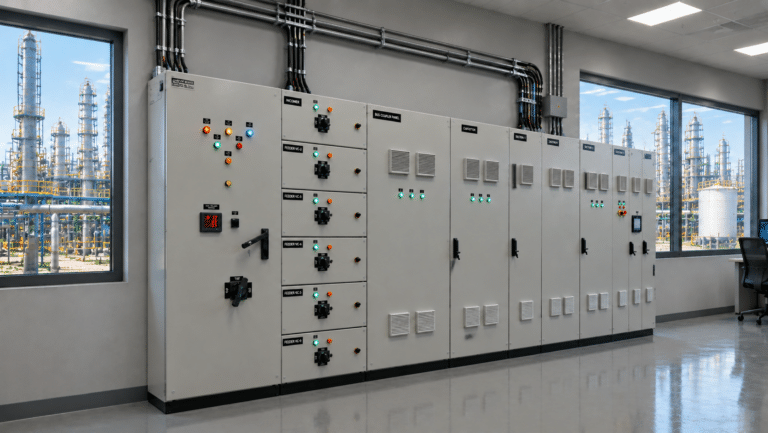

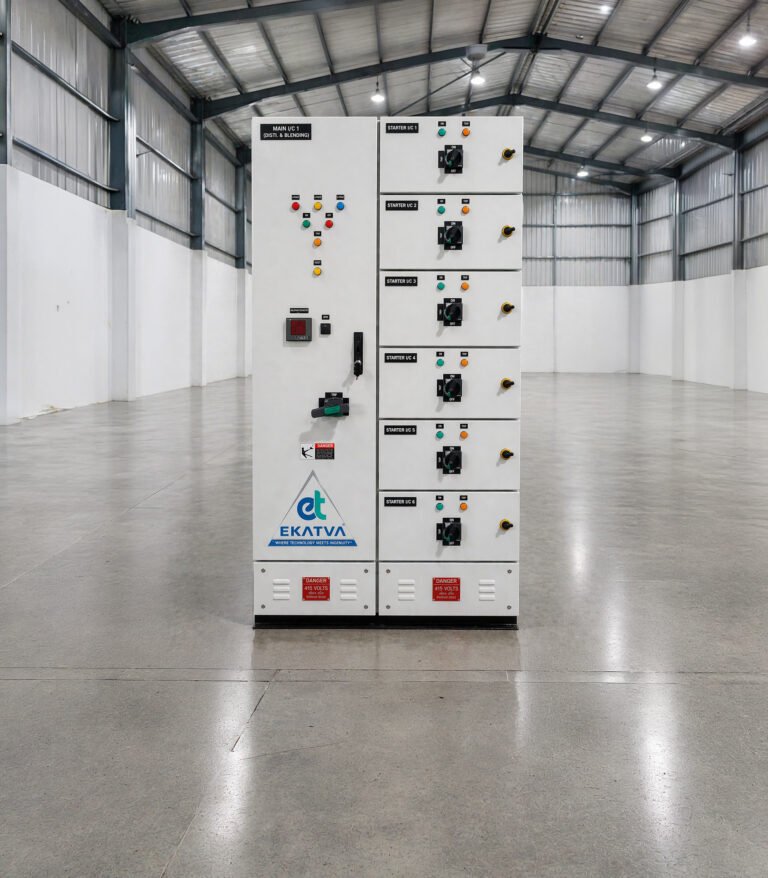

MCC (Motor Control Center) Panels
Our MCC (Motor Control Center) Panels are engineered for efficient control, protection, and monitoring of electric motors in industrial and commercial applications. Designed to centralize motor operations, these panels ensure reliable performance, enhanced safety, and optimized energy utilization across various processes.
Manufactured using premium-quality components and advanced engineering practices, our MCC Panels provide seamless motor starting, protection against electrical faults, and easy maintenance, making them ideal for demanding industrial environments.
Technical Features
- Centralized Motor Control & Monitoring
- DOL, Star-Delta, Soft Starter & VFD Integration
- Motor Overload & Short Circuit Protection
- Phase Failure & Single Phasing Protection
- Intelligent Motor Management
- Modular Feeder Design
- High Fault Withstand Capability
- Efficient Cable Management System
- Easy Expansion & Maintenance
- Factory Tested for Performance & Reliability
Key Features
- Custom In-house Manufacturing
- Reliable Motor Control Solutions
- Enhanced Electrical & Operational Safety
- Energy-Efficient Operation
- User-Friendly Control Interface
- Heavy-Duty Industrial Construction
- Easy Troubleshooting & Maintenance
- Project-Specific Customization
Applications
- Manufacturing Industries
- Process Plants
- Water & Wastewater Treatment Plants
- HVAC Systems
- Oil & Gas Facilities
- Chemical & Pharmaceutical Plants
- Food & Beverage Industries
- Infrastructure & Utility Projects
Why Choose Our MCC Panels?
Our MCC Panels are designed to provide reliable motor control, advanced protection, and efficient process management. With robust construction, intelligent motor control architecture, and high-quality components, they help reduce downtime, improve operational efficiency, and ensure safe and uninterrupted industrial operations.
Specifications
- Rated Voltage
- Up to 690V AC
- Frequency
- 50/60 Hz
- Rated Current
- Up to 6300A
- Motor Feeder Capacity
- As per Project Requirements
- Short Circuit Withstand Capacity
- Up to 65kA
- Busbar Material
- Electrolytic Grade Copper / Aluminium
- Starter Types
- DOL, Star-Delta, Soft Starter & VFD Compatible
- Protection Devices
- MCCB, MCB, MPCB, ACB
- Degree of Protection
- IP42 / IP54 / IP55
- Form of Segregation
- Form 2B / Form 3B / Form 4B
- Panel Construction
- Floor Mounted, Modular Design
- Metering & Monitoring
- Digital Multifunction Meters
- Compliance
- IEC 61439 & Relevant IS Standards
Panel Manufacturing

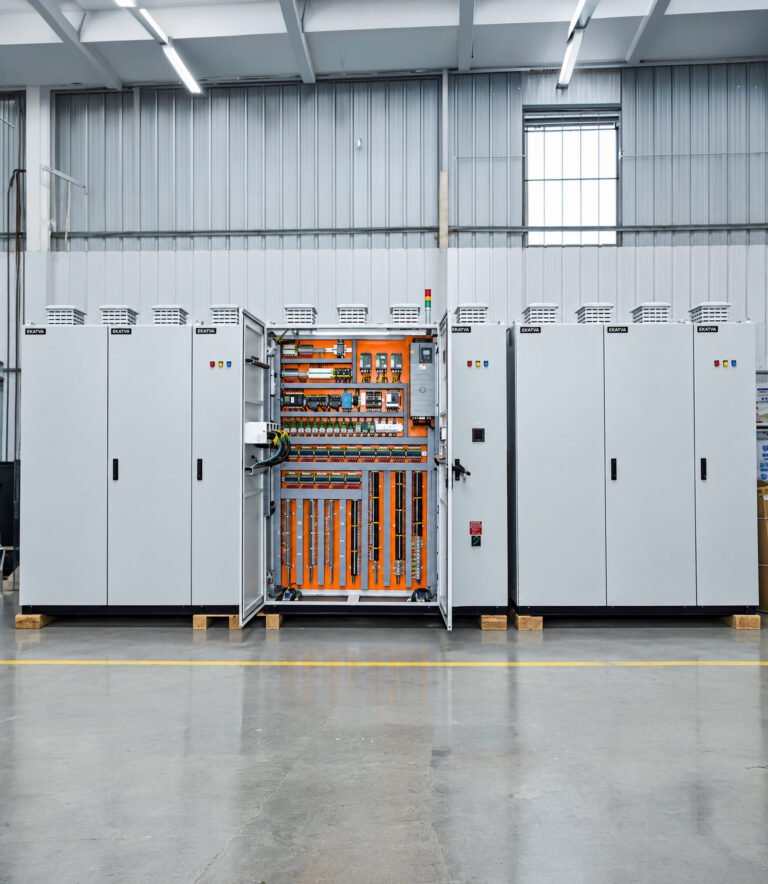

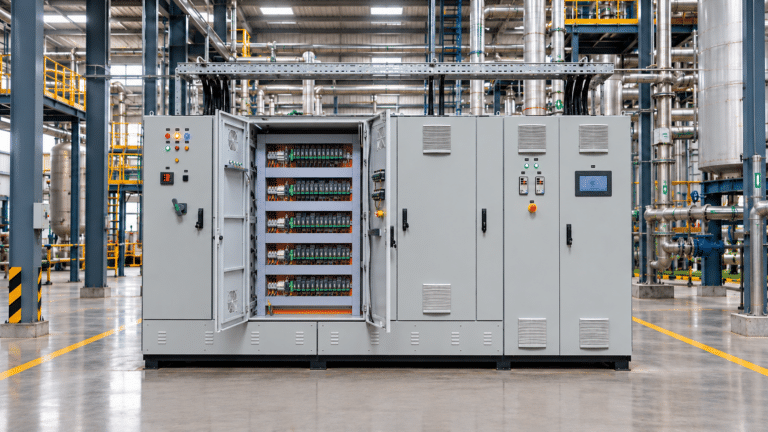

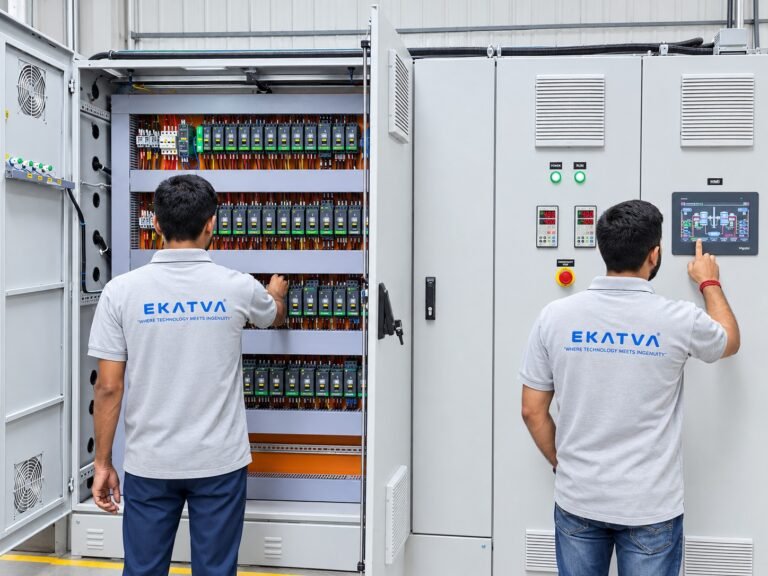

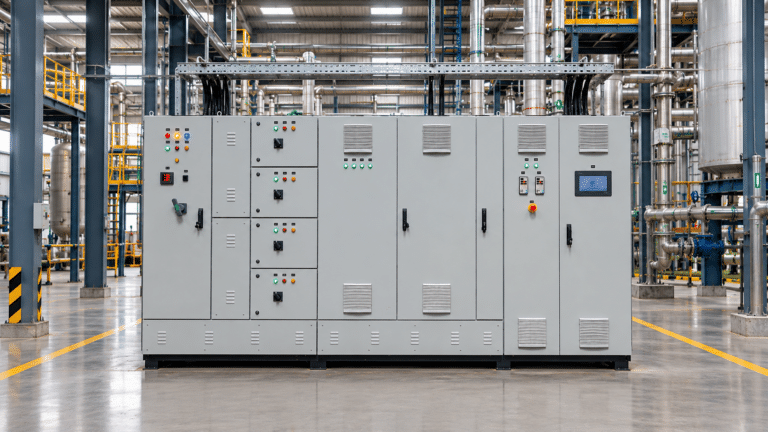

PLC, SCADA & IIoT Panels
Industry 4.0 Automation Solutions
Our PLC, SCADA & IIoT Panels are designed to deliver intelligent automation, real-time monitoring, and advanced process control for modern industrial facilities. By integrating PLC controllers, SCADA software, HMI systems, industrial networking, and IIoT technologies, these panels provide seamless control, enhanced operational visibility, and improved production efficiency.
Engineered for Industry 4.0 applications, our automation solutions enable centralized monitoring, remote access, predictive maintenance, data acquisition, and process optimization. The panels are customized to meet the specific requirements of manufacturing plants, utilities, infrastructure projects, and process industries.
Technical Features
- Real-Time Process Monitoring & Control
- SCADA-Based Centralized Supervision
- Touchscreen HMI Integration
- Remote Monitoring & Diagnostics
- IIoT Edge Gateway Connectivity
- Cloud-Based Data Analytics
- Predictive Maintenance Support
- Alarm Management & Event Logging
- Production Data Acquisition
- Energy Monitoring & Reporting
- Industrial Network Integration
- Factory Tested & Pre-Commissioned Solutions
Key Features
- Custom Automation Panel Design
- PLC Programming & SCADA Development
- HMI Graphics & Visualization
- Remote Access & Monitoring Solutions
- Industry 4.0 Ready Architecture
- Scalable & Future-Proof Design
- Reduced Downtime & Improved Productivity
- Turnkey Installation & Commissioning Support
Applications
- Manufacturing Industries
- Water & Wastewater Treatment Plants
- Food & Beverage Industries
- Pharmaceutical Plants
- Chemical & Process Industries
- Power & Utility Facilities
- Infrastructure Projects
- Smart Factory & Industry 4.0 Applications
Why Choose Our PLC, SCADA & IIoT Panels?
Our automation panels are engineered to deliver intelligent process control, enhanced operational efficiency, and real-time decision-making capabilities. By combining advanced PLC systems, powerful SCADA platforms, and modern IIoT technologies, they help industries improve productivity, reduce downtime, optimize resource utilization, and achieve seamless digital transformation.
Specifications
- PLC Platforms
- Siemens, Schneider Electric, Allen-Bradley, Delta, Mitsubishi & Equivalent
- HMI Interface
- Touchscreen HMI (7", 10", 12", 15" & Above)
- SCADA Compatibility
- WinCC, Ignition, Wonderware, Citect, FactoryTalk & Equivalent
- Communication Protocols
- Modbus RTU/TCP, Profinet, Profibus, Ethernet/IP, OPC-UA
- Industrial Networking
- Managed & Unmanaged Ethernet Switches
- Remote Connectivity
- VPN, Cloud & Web-Based Access
- Data Logging
- Historical Data Storage & Reporting
- IIoT Integration
- Edge Gateway & Cloud Connectivity
- Power Supply
- 24V DC Industrial Grade
- Panel Protection
- IP42 / IP54 / IP55
- Operating Environment
- Industrial Indoor Applications
- Compliance
- IEC Standards & Industrial Automation Practices
Panel Manufacturing

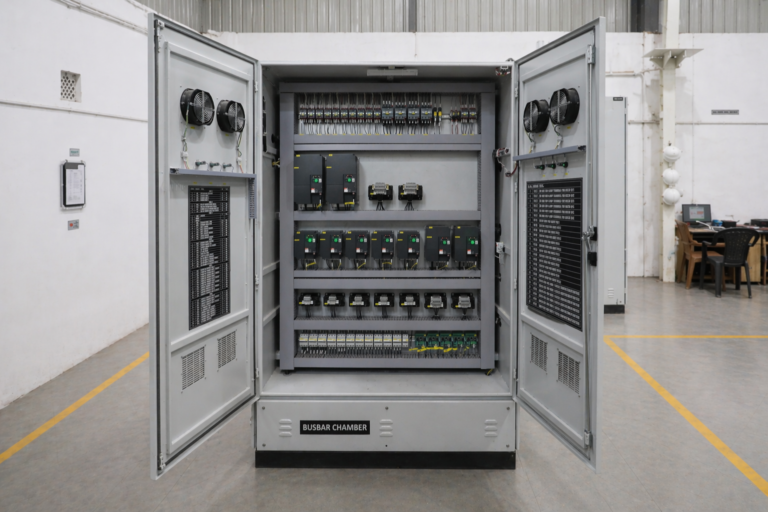

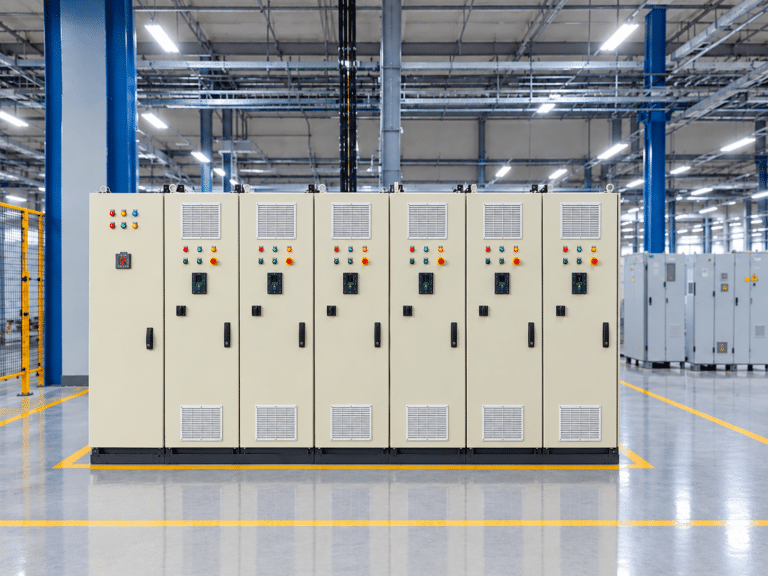

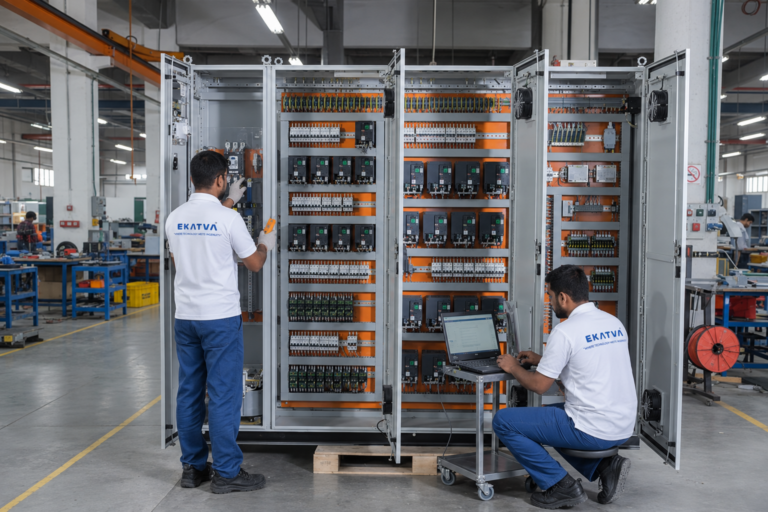

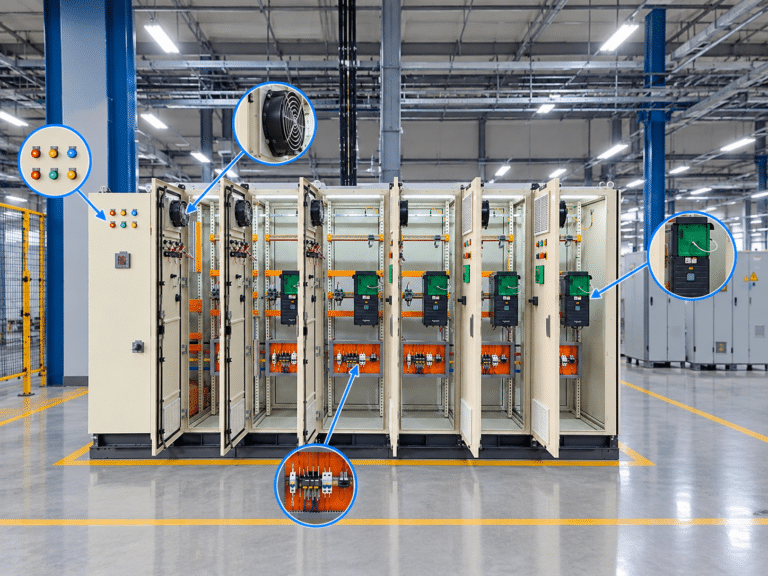

VFD & Soft Starter Panels
Energy Efficient Motor Control Solutions
Our VFD (Variable Frequency Drive) and Soft Starter Panels are engineered to provide precise motor control, energy optimization, and enhanced equipment protection for industrial applications. Designed for smooth motor operation, these panels help reduce starting current, minimize mechanical stress, and improve overall system efficiency.
By integrating advanced drive technologies and intelligent motor control systems, our panels enable accurate speed regulation, process optimization, reduced energy consumption, and extended equipment lifespan. They are ideal for applications requiring controlled motor acceleration, deceleration, and variable speed operation.
Technical Features
- Variable Speed Motor Control
- Soft Starting & Soft Stopping Functionality
- Significant Energy Savings
- Reduced Starting Current & Voltage Drop
- Motor Overload & Short Circuit Protection
- PID Control for Pumps & Fans
- Process Optimization & Flow Control
- Active & Passive Harmonic Filtering
- Real-Time Monitoring & Diagnostics
- Bypass Arrangement for Emergency Operation
- Enhanced Thermal Management
- Factory Tested for Performance & Reliability
Key Features
- Custom In-house Manufacturing
- Energy Efficient Motor Control Solutions
- Improved Equipment Life Cycle
- Reduced Mechanical Stress on Motors
- Precise Speed & Torque Control
- Easy Operation & Maintenance
- Smart Monitoring & Protection
- Project-Specific Customization
Applications
- Water & Wastewater Treatment Plants
- HVAC Systems
- Pumps & Pumping Stations
- Fans & Blowers
- Compressors
- Conveyor Systems
- Food & Beverage Industries
- Chemical & Process Industries
- Manufacturing Plants
- Infrastructure Projects
Why Choose Our VFD & Soft Starter Panels?
Our VFD & Soft Starter Panels are designed to maximize energy efficiency, improve motor performance, and ensure reliable operation in demanding industrial environments. With advanced motor control technologies, intelligent protection systems, and customized engineering solutions, they help reduce operational costs, minimize downtime, and enhance overall productivity.
Specifications
- Input Voltage
- 415V AC, 3 Phase (Project Specific Options Available)
- Frequency
- 50/60 Hz
- Motor Capacity
- Up to 500 HP and Above (As Required)
- Drive Type
- Variable Frequency Drive (VFD) & Soft Starter
- Control Voltage
- 24V DC / 230V AC
- Protection Devices
- MCCB, MCB, MPCB & Contactor-Based Protection
- Communication Protocols
- Modbus RTU/TCP, Profibus, Profinet, Ethernet/IP
- HMI Integration
- Local & Remote Monitoring Support
- Panel Protection
- IP42 / IP54 / IP55
- Cooling System
- Natural Ventilation / Forced Cooling
- Harmonic Mitigation
- Input Reactors, Line Chokes & Harmonic Filters
- Compliance
- IEC Standards & Industrial Automation Practices
Panel Manufacturing

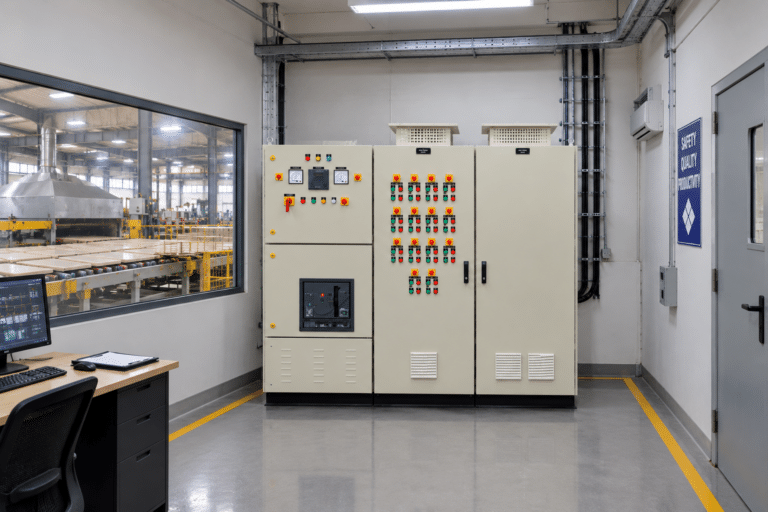

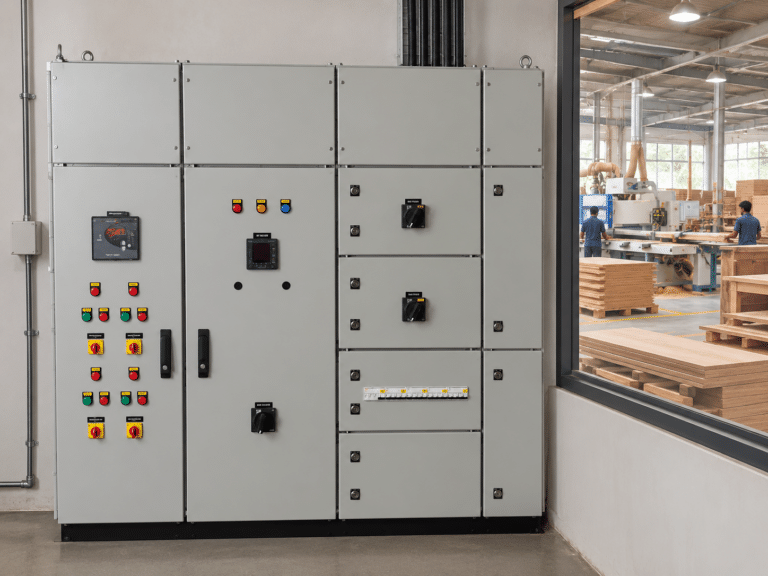

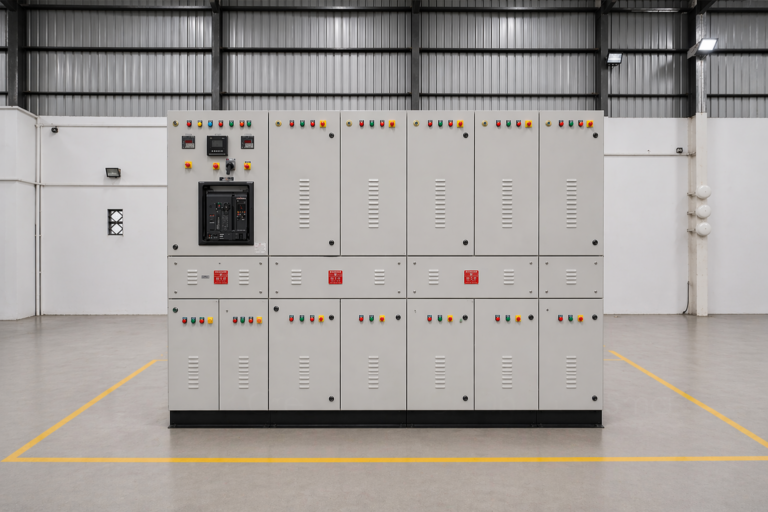

APFC & Capacitor Panels
Power Factor Correction & Energy Optimization
Our APFC (Automatic Power Factor Correction) & Capacitor Panels are engineered to improve power factor, reduce reactive power losses, and optimize overall electrical system efficiency. Designed with intelligent microprocessor-based controllers, these panels automatically monitor load conditions and switch capacitor banks as required to maintain the desired power factor.
By minimizing power factor penalties, reducing energy losses, and improving system stability, our APFC Panels help industries achieve significant cost savings while enhancing the performance and reliability of electrical infrastructure.
Technical Features
- Automatic Power Factor Correction
- Intelligent Capacitor Bank Switching
- Fast-Acting Microprocessor-Based APFC Relay
- Reactive Power Compensation
- Harmonic Mitigation with Detuned Reactors
- Thyristor Switching for Rapid Load Variations
- Real-Time Power Factor Monitoring
- Reduced Maximum Demand Charges
- Improved Voltage Stability
- Lower Transformer & Cable Losses
- Enhanced System Efficiency
- Factory Tested for Performance & Reliability
Key Features
- Custom In-house Manufacturing
- Intelligent Energy Optimization
- Reduction in Utility Power Factor Penalties
- Improved Electrical Network Performance
- Long-Life Heavy-Duty Capacitors
- Easy Operation & Maintenance
- Modular and Expandable Design
- Project-Specific Customization
Applications
- Manufacturing Industries
- Commercial Buildings
- Data Centers
- Hospitals & Healthcare Facilities
- Hotels & Shopping Complexes
- Textile Industries
- Chemical & Process Plants
- Infrastructure Projects
- Utility & Energy Facilities
Why Choose Our APFC & Capacitor Panels?
Our APFC & Capacitor Panels are designed to maximize energy efficiency, improve power quality, and reduce electricity costs. With intelligent control systems, premium-quality capacitors, and advanced harmonic mitigation solutions, they help maintain optimum power factor, enhance equipment life, and ensure reliable electrical system performance.
Specifications
- Rated Voltage
- 415V AC, 3 Phase
- Frequency
- 50/60 Hz
- Capacitor Bank Capacity
- Up to 1000 kVAr and Above (Project Specific)
- Capacitor Type
- Heavy Duty Metallized Capacitors
- APFC Relay
- Microprocessor-Based Intelligent Controller
- Switching Technology
- Contactor Based / Thyristor Based
- Number of Steps
- 6, 8, 12, 16, 24 Steps (As Required)
- Detuned Reactor Options
- 5.67%, 7%, 14% Harmonic Filter Reactors
- Busbar Material
- Electrolytic Grade Copper / Aluminium
- Protection Devices
- MCCB, MCB, HRC Fuse & Contactor Protection
- Degree of Protection
- IP42 / IP54 / IP55
- Metering
- Digital Multifunction Energy Meter
- Compliance
- IEC Standards & Relevant IS Standards
Panel Manufacturing

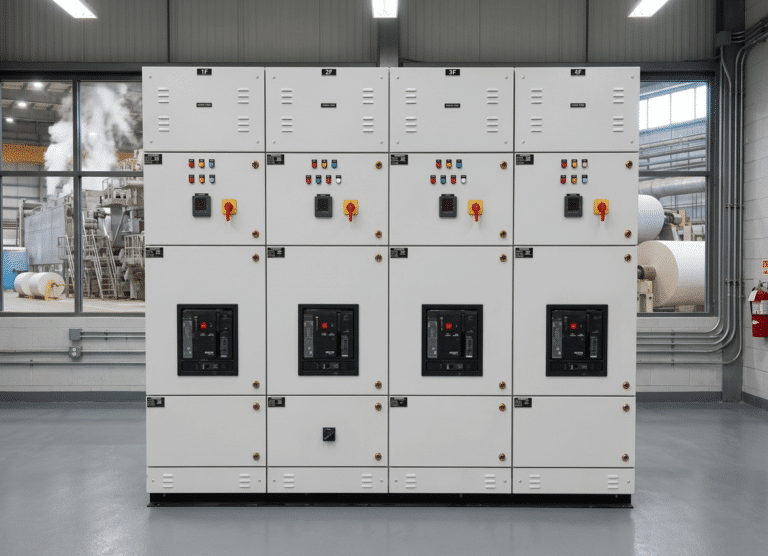

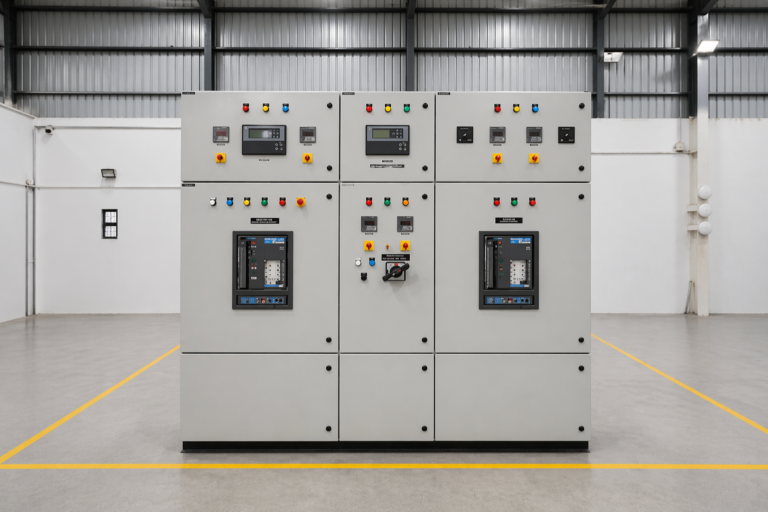

Synchronizing & DG Panels
Intelligent Power Management Solutions
Our Synchronizing & DG Panels are engineered to ensure seamless power management, uninterrupted operations, and efficient generator utilization in critical industrial and commercial applications. These panels enable automatic synchronization of multiple diesel generators (DGs) and facilitate smooth DG-to-DG or DG-to-Grid operation while maintaining system stability and reliability.
Designed with advanced control logic and intelligent monitoring capabilities, our Synchronizing Panels automatically manage load sharing, generator sequencing, power factor control, and system protection to optimize overall power generation performance and fuel efficiency.
Technical Features
- Automatic Generator Synchronization
- DG-to-DG & DG-to-Grid Synchronization
- Active & Reactive Load Sharing
- Auto Mains Failure (AMF) Functionality
- Automatic Generator Start/Stop Sequencing
- Peak Load Management
- Power Factor Control
- Real-Time Monitoring & Diagnostics
- Remote Monitoring & SCADA Integration
- Comprehensive Generator Protection
- Black Start & Emergency Power Management
- Factory Tested for Performance & Reliability
Key Features
- Custom In-house Manufacturing
- Intelligent Power Management
- Uninterrupted Power Supply Solutions
- Fuel-Efficient Generator Operation
- Reduced Manual Intervention
- Enhanced System Reliability
- Easy Operation & Maintenance
- Project-Specific Customization
Applications
- Manufacturing Industries
- Hospitals & Healthcare Facilities
- Data Centers
- Commercial Buildings
- Airports & Infrastructure Projects
- Hotels & Hospitality Facilities
- Power Plants & Utility Installations
- Mission-Critical Facilities
Why Choose Our Synchronizing & DG Panels?
Our Synchronizing & DG Panels are designed to deliver reliable power continuity, intelligent load management, and efficient generator operation. With advanced synchronization technology, robust protection systems, and real-time monitoring capabilities, they help reduce operational costs, improve system reliability, and ensure uninterrupted power availability for critical applications.
Specifications
- System Voltage
- Up to 690V AC
- Frequency
- 50/60 Hz
- Generator Synchronization
- DG-to-DG & DG-to-Grid
- Number of Generators
- 2 to 32 DG Sets (Project Specific)
- Control System
- PLC / Microprocessor-Based Controller
- Synchronization Method
- Automatic & Manual
- Load Sharing
- Active & Reactive Load Sharing
- Communication Protocols
- Modbus RTU/TCP, Profibus, Profinet, Ethernet/IP
- HMI Interface
- Touchscreen HMI for Monitoring & Control
- Protection Devices
- ACB, MCCB & Generator Protection Relays
- Metering
- Multifunction Digital Power Monitoring
- Panel Protection
- IP42 / IP54 / IP55
- Compliance
- IEC Standards & Relevant IS Standards
Product enquiry
I am interested in
Share your details — our sales team will get back to you within one working day.
Thank you — enquiry sent!
Our sales team has your details and will contact you within one working day.
INDUSTRIES WE SERVE
Engineering Reliability Across Critical Industrial Sectors uptime is everything
From Pharmaceuticals and Chemicals to Manufacturing, Water Treatment, Utilities, and Renewable Energy, ETPL engineered to enhance operational reliability, process efficiency, safety, and sustainable industrial performance.
Quality & testing
Tested before it ever leaves our floor
Every panel goes through a documented inspection and test plan. You receive the test reports, drawings and manuals with every dispatch.
-
01
Visual & dimensional check
Fabrication, powder coating, labelling and layout verified against approved drawings.
-
02
Insulation resistance test
Megger testing of busbars, power and control circuits for healthy insulation.
-
03
High-voltage (dielectric) test
Power-frequency withstand test to confirm clearances and insulation integrity.
-
04
Functional & interlock test
Every feeder, interlock, indication and protection operated and verified.
-
05
Control & logic simulation
PLC, HMI and communication tested with simulated field signals.
-
06
Factory acceptance (FAT)
Witness testing with you or your consultant, with complete test reports.
Let’s talk
Interested in Panel Manufacturing? Let’s size it for you.
Share your requirement — panel, automation or software — and our engineers will respond within one working day with the right solution.
+91 97370 43400
